| 顯示內容 | 產品圖 | 型號 | 尺寸 (寸) |
外形尺寸 (mm) |
視域尺寸 (mm) |
引腳 | 視角 | 接口 | IC Part No. | 亮度 (cd/m2) |
溫度 (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|

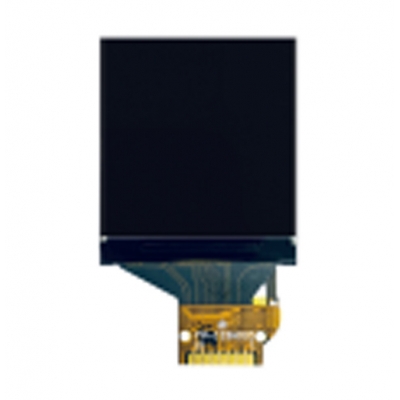

| 240*240 |  |
QT-T13SH12ZP01 | 1.30 | 26.16*29.22*1.90 | 23.4x23.4 | 12pin | ALL VIEW | 4 wire SPI/3wire SPI | ST7789V | 300Cd/m3 | - 20~+70°C |

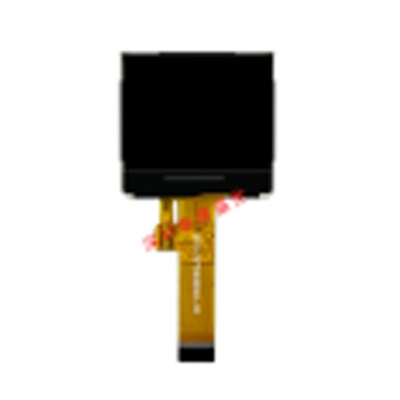

| 240*240 |  |
QT-T13SH20ZP01 | 1.30 | 26.1(W ) ×29.15 (H)×2.0(T) | 23.4x23.4 | 20pin | ALL VIEW | 80 MCU 8-bit bus | ST7789V+HSD | 180Cd/m3 | - 20~+70°C |

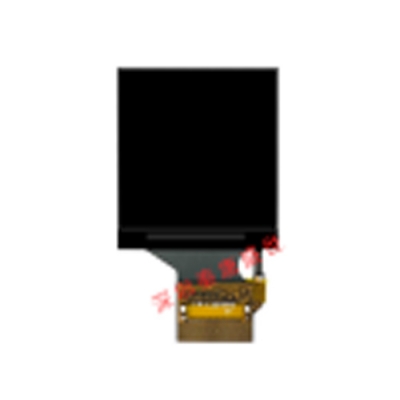

| 240*240 |  |
QT-T13ST24ZP03 | 1.30 | 26.16*29.22*1.90 | 23.4x23.4 | 24pin | ALL VIEW | 4 wire SPI/3wire SPI | ST7789V | 300Cd/m3 | - 20~+70°C |

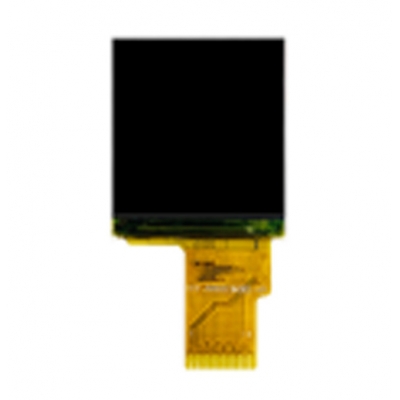

| 240*240 |  |
QT-T13ST24ZP02 | 1.30 | 26.0x29.15x1.50 | 23.4x23.4 | 24pin | ALL VIEW | 4 wire SPI/3wire SPI | ST7789V | 300Cd/m3 | - 20~+70°C |
| 240*240 |  |
QT-T13ST24KP02 | 1.30 | 26.0x29.15x1.50 | 23.4x23.4 | 24pin | ALL VIEW | 4 wire SPI/3wire SPI | ST7789 | 300Cd/m3 | - 20~+70°C |
| 240(RGB) x208 |  |
QT-T122SH12P02 | 1.30 | 26.16(H)x29.22(V) | 23.4x23.4 | 12pin | ALL VIEW | SPI | ST7789 | 300Cd/m3 | - 20~+70°C |

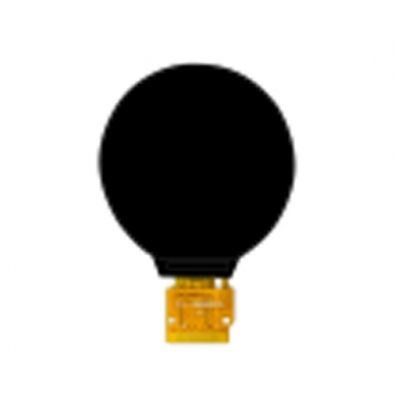

| 240(RGB) x240 |  |

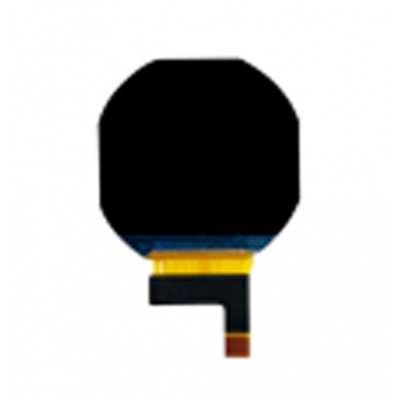

QT-T128SH2P01 | 1.28圓形 | 35.6(H) x 38.1(V) x1.5 (D) | 32.4(H) x 32.4(V) | 12pin | ALL | 4 Line SPI | GC9A01 | 300-400Cd/m3 | - 20~+70°C |
| 240(RGB) x208 |  |
QT-T122ST13P01 | 1.22球拍形 | 33.76x32.51 | 30.96x26.83 | 13pin | FULL VIEW | 4SPI | ST7789V | 200Cd/m3 | - 20~+70°C |
| 135(H)RGB x 240(V) |  |
QT-T114SH13P01 | 1.14 | 14.864(H) x 24.912(V) | 17.6(H) x 31.0(V) | 13pin | ALL | 4 Line SPI | ST7789V | 300Cd/m3 | - 20~+70°C |
| 128xRGBx96 |  |
QT-T10WH14P01 | 1.00 | 23.75(H)*22.06(V) | 20.35*15.26 | 14pin | TN-12 o`clock | 4 SPI | ST7735S | 250Cd/m3 | - 20~+70°C |
| 128xRGBx96 |  |
QT-T10NT10P01 | 1.00 | 23.75(H)*22.06(V) | 20.35*15.26 | 23pin | TN-12 o`clock | 4 SPI | ST7735S | 250Cd/m3 | - 20~+70°C |
| 128xRGBx96 |  |
QT-T10NH23P01 | 1.00 | 23.75(H)*22.06(V) | 20.35*15.26 | 23pin | TN-12 o`clock | 4 SPI | ST7735S | 250Cd/m3 | - 20~+70°C |
